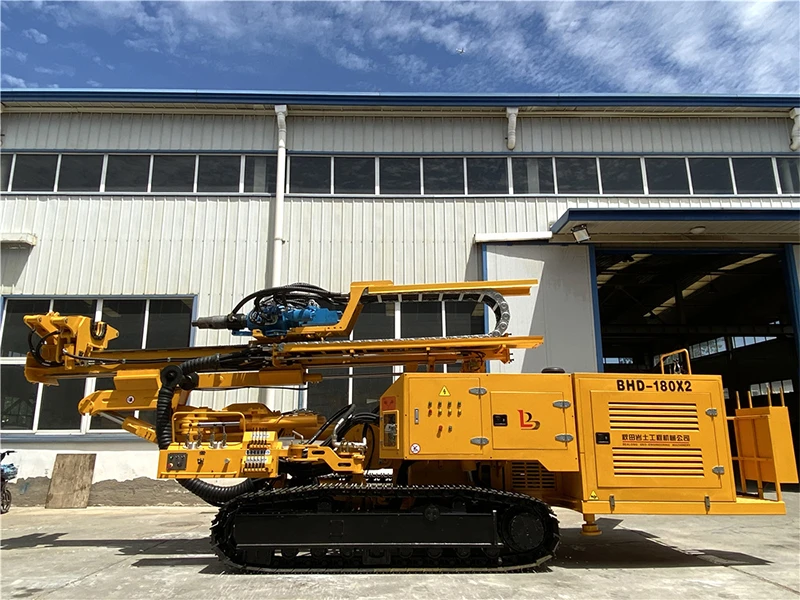

Mountain Slope Reinforcement Rig



The Dual-power Anchor Drilling Rig is a modern anchoring rig that integrates environmental friendliness, high efficiency, and flexibility. It features an innovative dual-power system combining an electric motor and a diesel engine, effectively overcoming the limitations of traditional single-power models. Users can freely switch power sources based on specific site conditions-easily adapting to indoor or outdoor environments, varying altitudes, and locations with or without grid power-thereby gaining a more flexible and efficient construction solution.



While retaining the core drilling capabilities of standard slope reinforcement rigs, this equipment features a comprehensively optimized power system. The electric motor and diesel engine can operate independently or in flexible combination to meet operational needs, delivering consistent, reliable power. This ensures excellent drilling efficiency across diverse geological formations and complex working conditions, making it an ideal choice for balancing eco-friendly practices, energy conservation, and high-efficiency operations.





BHD-180X2 anchor drilling rigs
Engine
Yuchai		QSB4.5-C180
Max. power output	KW	132
Electric system	V	24
Fuel tank capacity	L	450
Motor power	KW	90+15
Hydraulic system
Hydraulic pumps
1st circuit operating pressure	Mpa	0-28
2nd circuit operating pressure	Mpa	0-24
3rd circuit operating pressure	Mpa	0-24
Hydr. oil tank capacity	L	460
Crawler base
Crawler type		LG-154
Towing force	T	13
Crawler speed	km/h	1.8/2.7
Ground pressure	N/cm²	5.8
Overall width	mm	2280
Length of crawler units	mm	3295
Ground clearance	mm	350
Drill mast type
Motor reducer/chain
Feed length	mm	3500
Feed force	kN	38
Retraction force	kN	76
Feed rate	m/min	0-18
Retraction rate	m/min	0-9
Fast feed rate	m/min	0-65
Fast retraction rate	m/min	0-33/68
Hydraulic drifter
Mode of Operation		Rotary/Percussive
Percussion Frequency	Times/min	0-1350
Max. torque	N·m	13600
Rotating	r/min	0-55;0-110; 0-80;0-160;
Clamp range	mm	60-260
Max. clamp force	KN	310
Transport dimensions(L*W*H)	mm	8200*2280*2800
Weight	kg	16000



Mountain slope reinforcement rigs are widely used in various geotechnical, foundation, and infrastructure projects.

1. They are an ideal choice for slope stabilization projects, including highway and railway slope reinforcement, mountain slope anchoring, and rockfall mitigation.

2. They are also extensively applied in foundation engineering, covering projects such as building foundation anchoring, retaining wall construction, deep excavation support, and soil nailing.

3. In the mining and tunneling sectors, they provide reliable performance for mine roadway support, tunnel reinforcement, and underground excavation projects.

4. They are also suitable for hydropower and water conservancy projects, such as dam reinforcement, hydroelectric power station construction, and the anchoring of hydraulic structures.

5. In infrastructure development, they are widely used for bridge foundation reinforcement, urban rail transit, municipal engineering, and wind power foundation construction, demonstrating excellent adaptability to diverse geological conditions and operating environments.





We provide not only reliable drilling equipment but also comprehensive support to ensure your project's success.

• OEM and ODM customization services
• Factory-direct sales offering excellent value
• Rigorous pre-shipment quality inspections
• Extensive global shipping experience
• Professional technical support
• Responsive after-sales service
