Full Hydraulic Engineering Drilling Rig
Item No.: BHD-180X2
Product Name: Full Hydraulic Engineering Drilling Rig
Brand: BEALONG
Engine: Yuchai
Customization Available
MOQ: 1
Description
Product Introduction
Full hydraulic engineering drilling rig is advanced drilling equipment that utilizes hydraulic transmission technology and are widely used in various engineering drilling operations. These rigs use a hydraulic system as their core power source, employing hydraulic motors and cylinders as actuators to achieve full-process control of the drilling operation. Fully hydraulic engineering drilling rigs are characterized by their compact structure, ease of operation, high drilling efficiency, and strong adaptability, enabling them to meet the drilling needs of different geological conditions and engineering requirements.
Technical Specifications
|
BHD-180X2 anchor drilling rigs |
||
|
Engine |
||
|
Yuchai |
QSB4.5-C180 |
|
|
Max. power output |
KW |
132 |
|
Electric system |
V |
24 |
|
Fuel tank capacity |
L |
450 |
|
Motor power |
KW |
90+15 |
|
Hydraulic system |
||
|
Hydraulic pumps |
||
|
1st circuit operating pressure |
Mpa |
0-28 |
|
2nd circuit operating pressure |
Mpa |
0-24 |
|
3rd circuit operating pressure |
Mpa |
0-24 |
|
Hydr. oil tank capacity |
L |
460 |
|
Crawler base |
||
|
Crawler type |
LG-154 |
|
|
Towing force |
T |
13 |
|
Crawler speed |
km/h |
1.8/2.7 |
|
Ground pressure |
N/cm² |
5.8 |
|
Overall width |
mm |
2280 |
|
Length of crawler units |
mm |
3295 |
|
Ground clearance |
mm |
350 |
|
Drill mast type |
||
|
Motor reducer/chain |
||
|
Feed length |
mm |
3500 |
|
Feed force |
kN |
38 |
|
Retraction force |
kN |
76 |
|
Feed rate |
m/min |
0-18 |
|
Retraction rate |
m/min |
0-9 |
|
Fast feed rate |
m/min |
0-65 |
|
Fast retraction rate |
m/min |
0-33/68 |
|
Hydraulic drifter |
||
|
Mode of Operation |
Rotary/Percussive |
|
|
Percussion Frequency |
Times/min |
0-1350 |
|
Max. torque |
N·m |
13600 |
|
Rotating |
r/min |
0-55;0-110; 0-80;0-160; |
|
Clamp range |
mm |
60-260 |
|
Max. clamp force |
KN |
310 |
|
Transport dimensions(L*W*H) |
mm |
8200*2280*2800 |
|
Weight |
kg |
16000 |

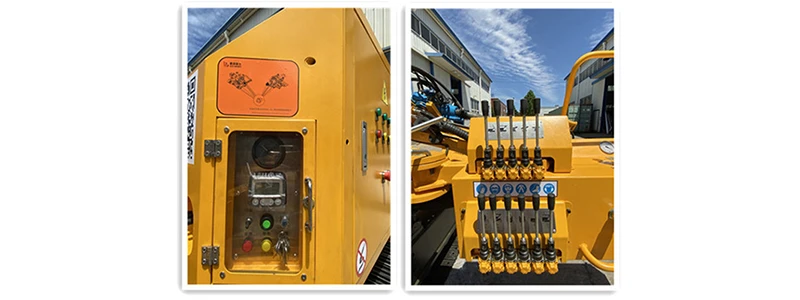

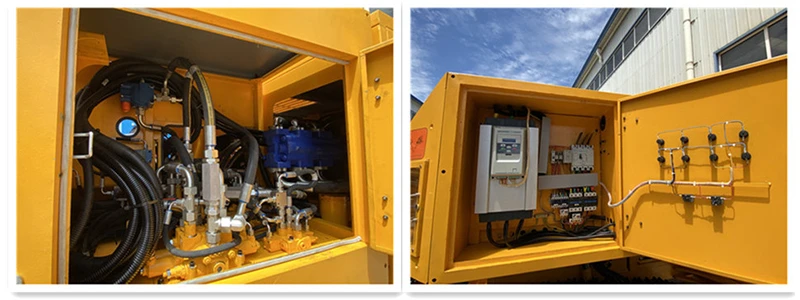

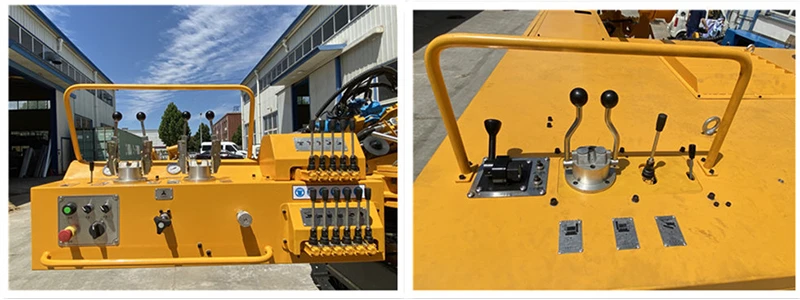

Product Details
Product Applications
Fully hydraulic engineering drilling rigs are widely used in the following fields:
- Mining: Drilling for water exploration, water injection, gas drainage, and core sampling in non-ferrous metal mines, coal mines, etc.
- Foundation Engineering: Drilling for building pile foundations, high-voltage power line tower pile foundations, dam foundations, etc.
- Tunnel Engineering: Tunnel exploration and support hole construction.
- Water Conservancy Engineering: Well drilling and geothermal well development.
- Geological Exploration: Geological core sampling and micro-logging for oil exploration, etc.
- Environmental Engineering: Geological disaster control and foundation pit support, etc.
- Transportation: Foundation construction for bridge and subway projects.
Product Function

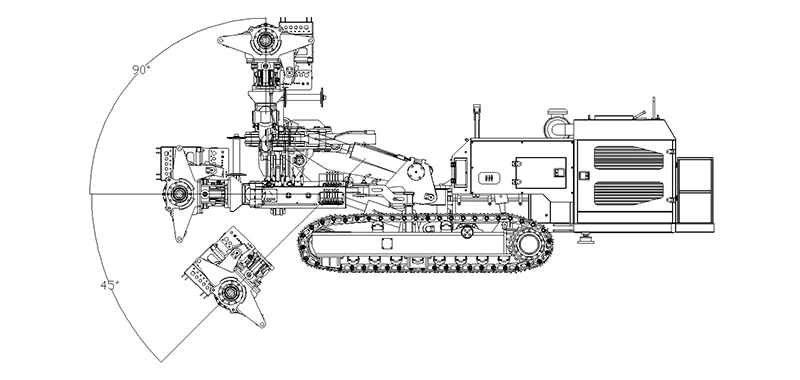

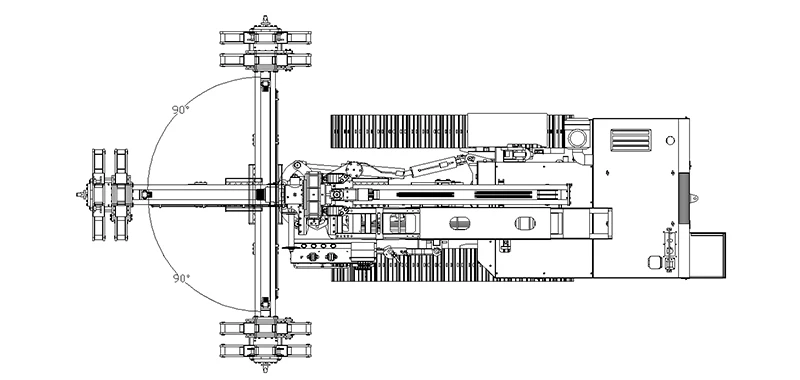

Drilling Function: Enables 0-360 degree omnidirectional drilling, adapting to drilling needs at different angles.
Drilling Methods: Full hydraulic engineering drilling rig supports multiple drilling methods, including down-the-hole hammer drilling, rotary drilling, and auger drilling.
Feed System: Hydraulic cylinders directly feed and pull up the drill bit, providing high feed and pull-up capacity, with adjustable feed pressure and speed.
Walking Function: Some models are equipped with a tracked walking system, improving drilling and stabilization efficiency.

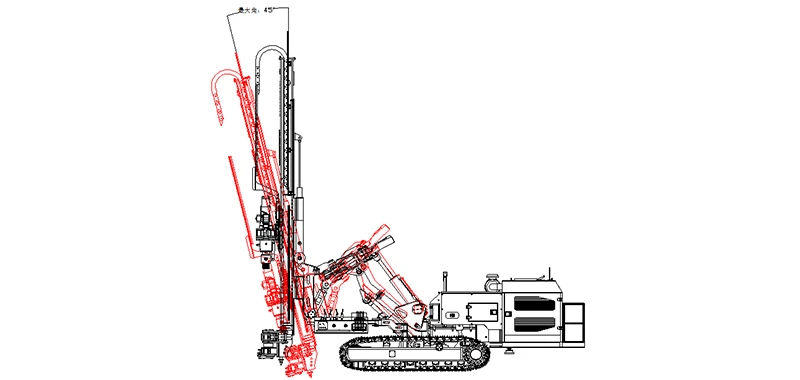

Angle Adjustment: Allows for hydraulic adjustment of the drilling angle without manual assistance.
Drill Bit Operation: Automatic disassembly and installation of drill rods, reducing labor intensity.
Parameter Adjustment: Stepless speed regulation; output torque and speed can be adjusted arbitrarily to adapt to different formation requirements.
