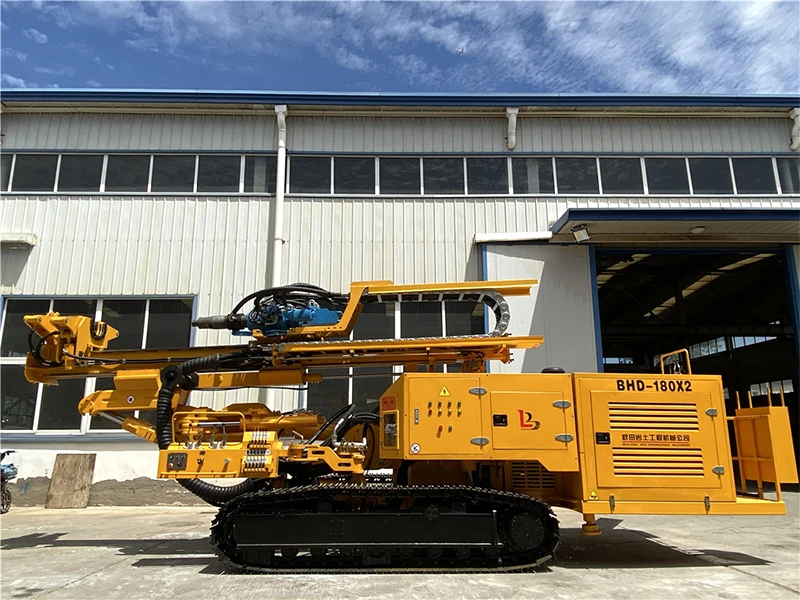

Dual-Power Crawler Anchor Drilling Rig
Item No.: BHD-180X2
Product Name: Dual-Power Crawler Anchor Drilling Rig
Brand: BEALONG
Engine: Yuchai
Customization Available
MOQ: 1
Description
Product Introduction
Dual-power crawler anchor drilling rig is a new type of anchor drilling rig that balances environmental protection, energy saving and efficient operation. It mainly adopts a "motor + diesel engine" dual-power drive mode, breaking through the limitations of traditional single-power drilling rigs. It can flexibly switch the power source according to the construction scenario, adapting to various complex operating environments such as indoor and outdoor, high and low altitudes, and with or without power supply conditions. It is the preferred equipment that balances green construction and efficient production capacity. On the basis of retaining the core functions of general anchor drilling rigs, this drilling rig optimizes the power system configuration, and the dual power sources can operate independently and work collaboratively to ensure stable power output during drilling and meet the drilling needs of different formations.
Technical Specifications
|
BHD-180X2 anchor drilling rigs |
||
|
Engine |
||
|
Yuchai |
QSB4.5-C180 |
|
|
Max. power output |
KW |
132 |
|
Electric system |
V |
24 |
|
Fuel tank capacity |
L |
450 |
|

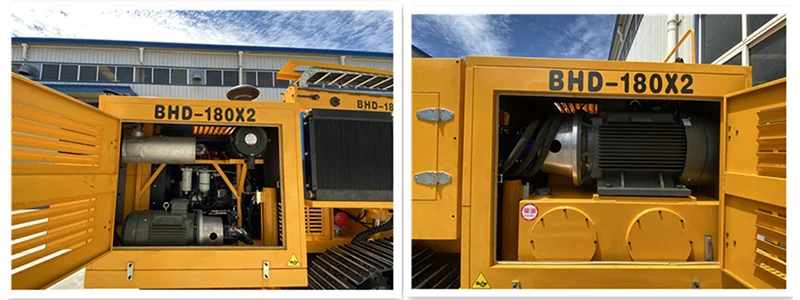

Motor power |
KW |
90+15 |
|
Hydraulic system |
||
|
Hydraulic pumps |
||
|
1st circuit operating pressure |
Mpa |
0-28 |
|
2nd circuit operating pressure |
Mpa |
0-24 |
|
3rd circuit operating pressure |
Mpa |
0-24 |
|
Hydr. oil tank capacity |
L |
460 |
|
Crawler base |
||
|
Crawler type |
LG-154 |
|
|
Towing force |
T |
13 |
|
Crawler speed |
km/h |
1.8/2.7 |
|
Ground pressure |
N/cm² |
5.8 |
|
Overall width |
mm |
2280 |
|
Length of crawler units |
mm |
3295 |
|
Ground clearance |
mm |
350 |
|
Drill mast type |
||
|
Motor reducer/chain |
||
|
Feed length |
mm |
3500 |
|
Feed force |
kN |
38 |
|
Retraction force |
kN |
76 |
|
Feed rate |
m/min |
0-18 |
|
Retraction rate |
m/min |
0-9 |
|
Fast feed rate |
m/min |
0-65 |
|
Fast retraction rate |
m/min |
0-33/68 |
|
Hydraulic drifter |
||
|
Mode of Operation |
Rotary/Percussive |
|
|
Percussion Frequency |
Times/min |
0-1350 |
|
Max. torque |
N·m |
13600 |
|
Rotating |
r/min |
0-55; 0-110; 0-80; 0-160; |
|
Clamp range |
mm |
60-260 |
|
Max. clamp force |
KN |
310 |
|
Transport dimensions(L*W*H) |
mm |
8200*2280*2800 |
|
Weight |
kg |
16000 |

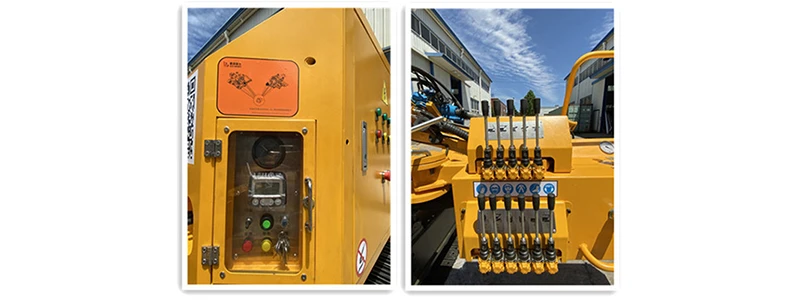

Product Details
Product Advantages
Dual-Power Design for Enhanced Adaptability
Breaking through the limitations of traditional single-power systems, it can operate normally regardless of whether the construction site has power supply, significantly expanding the equipment's applicability.
Energy Saving and Environmental Protection, Reducing Construction Costs
When the Dual-power crawler anchor drilling rig uses electric drive, the cost of electricity is far lower than diesel consumption, effectively reducing long-term operating costs while also reducing carbon emissions and environmental pollution.
Continuous Construction, Reduced Downtime Risks
The dual-power system complements each other; when one power source is limited, it can quickly switch to the other, ensuring project progress.
Stable Power and High Drilling Efficiency
Optimized power matching design ensures a continuous and stable torque output during drilling, improving drilling efficiency and hole quality.
Meets Green Construction Requirements
Low noise and low emissions, making it particularly suitable for urban construction, tunnel construction, and projects with stringent environmental protection requirements.
More Economical Operating Costs
Flexible selection of power modes based on working conditions maximizes energy utilization while ensuring construction efficiency, reducing overall operating costs.
Easy maintenance and high reliability
The power system has a mature and stable structure, with high durability of key components, making maintenance convenient and reducing equipment failure rate.
FAQ
Q: Can the electric drive mode and diesel mode work simultaneously?
A: Depending on the equipment configuration, the dual power systems can operate independently, and some models support coordinated operation to meet higher power demands under special working conditions.
Q: Will the dual-power system increase maintenance difficulty?
A: No. The equipment adopts a modular design, simplifying the maintenance process. Key components are easy to inspect and repair, effectively reducing later maintenance costs.
Q: What are the advantages of dual-power anchoring drilling rigs compared to traditional diesel-powered drilling rigs?
A: Dual-power anchoring drilling rigs have significant advantages such as environmental friendliness and energy saving, strong construction adaptability, low operating costs, strong continuous operation capability, and meeting the requirements of green construction.
