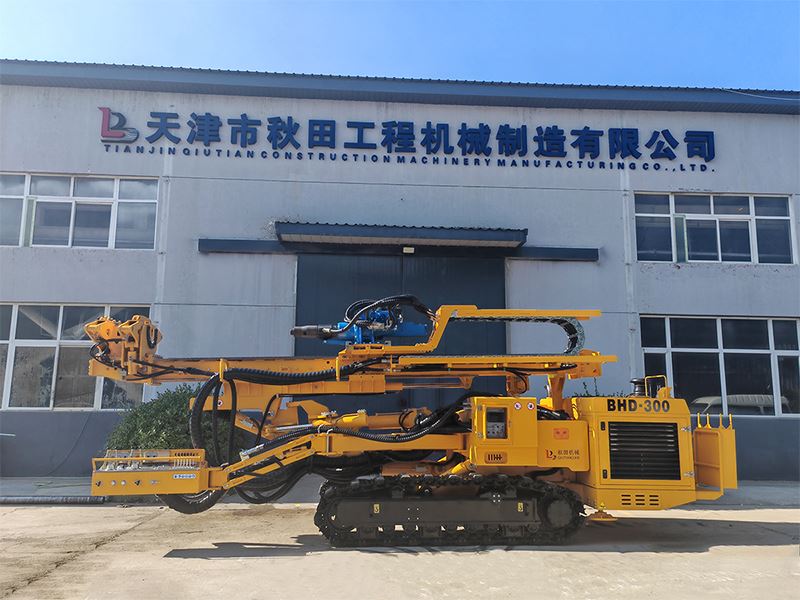

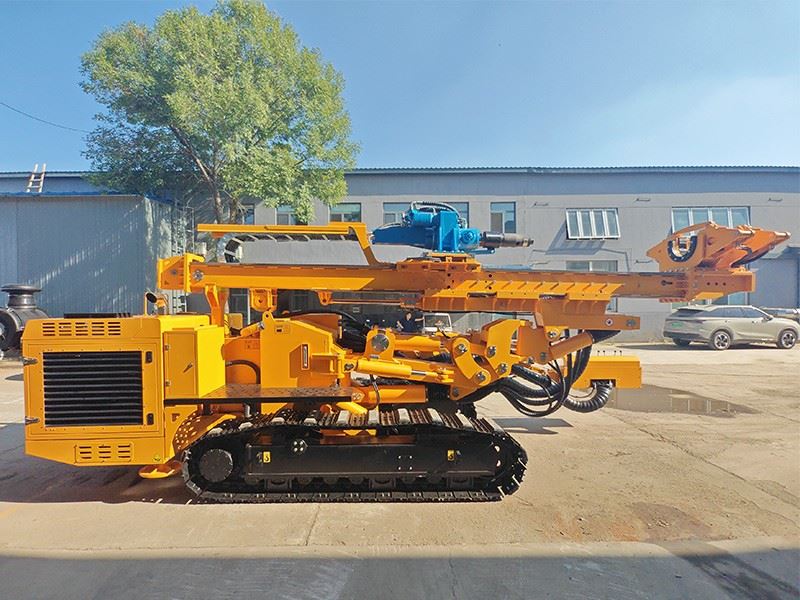

Hydraulic Multi-functional Drill Rig
Item No.: BHD-300
Product Name: Crawler Drilling Rig
Brand: YCA07260-T301
Customization Available
MOQ: 1
Description
Product Introduction
The BHD-300 hydraulic multi-functional drill rig is developed for demanding domestic operating conditions. It features powerful output, flexible operation, a highly stable load‑sensing system and high working efficiency. With easy maintenance and low operating costs, it delivers excellent cost‑performance.
Technical Specifications
|

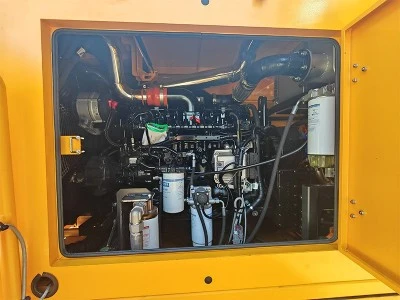

Engine Model No. |
YCA07260-T301 |
|
Emission level |
Ⅲ |
|
Rated power (kW) |
191KW @2100rpm |
|
Caterpillar Band Model No. |
LG-154 |
|
Tramming Motor |
Double-speed |
|
Tramming speed (km/h) |
1.5/2.3 |
|
Ground pressure (N/cm2) |
7.4 |
|
Gradeability (°) |
25 |
|
Rotation rate at low gear (r/min) |
0~53 |
|
Rotation rate at high gear (r/min) |
0~105 |
|
Torque range at high gear (Nm) |
9000 |
|
Torque range at low gear (Nm) |
18000 |
|
Impact work (N*m) |
1180 |
|
Percussion frequency (min1) |
1250 |
|
Feed stroke(mm) |
4400 |
|
Feed force(kN) |
56 |
|
Retraction force(kN) |
110 |
|
Feed rate(m/min) |
0~12 0-63 |
|
Retraction rate(m/min) |
0-6.3/13 0-32/66 |
|
Feeding Pattern |
Hydro-cylinder + Chain |
|
Clamp range(mm) |
60-320 |
|
Max. clamp force(kN) |
324 |
|
Weight(T) |
18 |
Product Details
|
|
|
|
|
|
|
|
|
|
Applications
Mining
Quarrying
Foundation Drilling
Infrastructure Construction
Geotechnical Engineering
Road Construction
Water Conservancy Projects
Slope Stabilization
Key Advantages
Built for Demanding Operating Conditions
High-Power Performance: Powered by a 191 kW engine, BHD300 provides strong power output for demanding drilling operations.
Stable Hydraulic Control: The load-sensing hydraulic system is designed to provide stable power management and responsive machine control.
Flexible Operation: The crawler-mounted design and dual-speed travel system provide flexibility when moving between drilling locations.
Easier Maintenance: The BHD-300 hydraulic multi-functional drill rig is designed with accessible maintenance points and a relatively simple maintenance structure to help reduce service downtime.
Lower Operating Cost: The machine focuses on efficient power utilization, straightforward maintenance, and durable components to help control long-term operating costs.
Customization Optional Equipment
Optional Configurations:
Different drilling tools
Different drill rods
Different engine configurations
Cab / canopy
Dust suppression
Cold-weather package
Hot-weather package
Remote control
Different hydraulic configurations
FAQ
1. What are the applications of the BHD300 crawler drilling rig?
The BHD300 crawler drilling rig is designed for demanding drilling operations that require high power, high torque, and stable performance. Equipped with a 191 kW engine, a two-speed travel system, and a load-sensing hydraulic system, it delivers robust power output and flexible maneuverability. Its crawler-based design enables it to adapt to complex and varied job site environments.
2. Is the BHD300 easy to maintain and suitable for long-term operation?
The BHD300 features a streamlined, maintenance-friendly design that simplifies routine servicing. Its load-sensing hydraulic system ensures operational stability, while the rugged crawler undercarriage and critical components are built to withstand harsh working conditions. Furthermore, the rig is designed to minimize maintenance complexity and control long-term operating costs.
